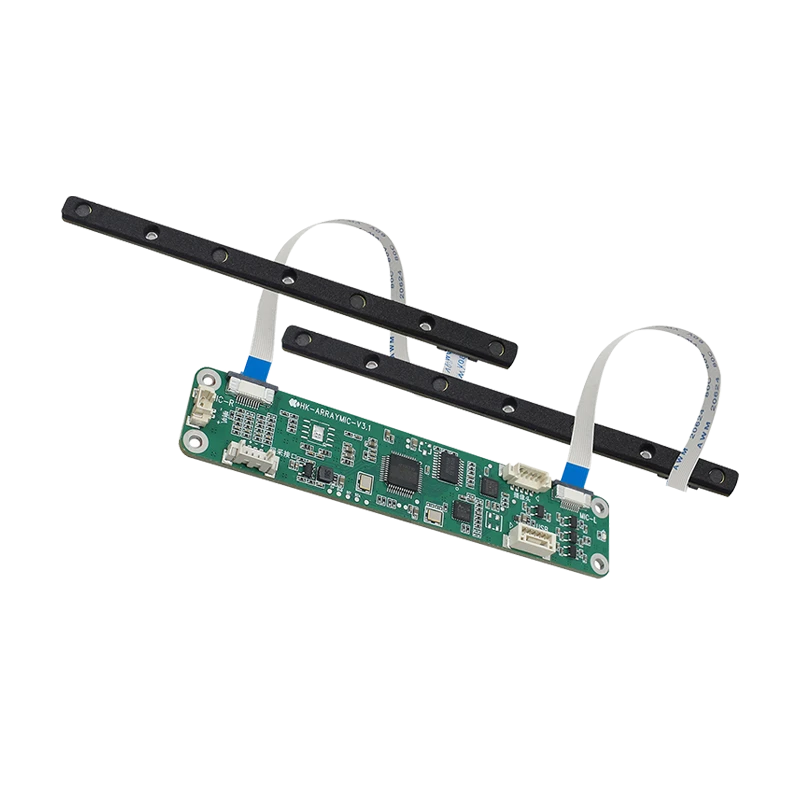

HK-ARRAYMIC-V3.2 8-Microphone Array Far-Field Audio Module
The HK-ARRAYMIC-V3.2 is an 8-microphone array module designed for far-field voice pickup and AI voice interaction. With integrated DSP, Acoustic Echo Cancellation (AEC), and Automatic Gain Control (AGC), it delivers clear, reliable audio for interactive displays, video conferencing systems, and Android-based smart devices.
Key Highlights
- 360°Omnidirectional Far-Field Pickup
- Smart Adaptive Gain Control (AGC)
- Automatic Echo Cancellation (AEC)
- Enhanced Voice Clarity (Noise Reduction)
Overview & Technical Details
Design, key features, typical applications, and core specifications.
Description
The HK-ARRAYMIC-V3.2 is a high-performance 8-microphone array module designed for advanced far-field acoustic sensing and voice acquisition. Built for seamless embedded integration into interactive flat panels, video conferencing systems, and Android-based intelligent hardware, the module delivers exceptional voice intelligibility across expansive spaces. Featuring an integrated DSP suite with full-duplex Acoustic Echo Cancellation (AEC) and Dynamic Automatic Gain Control (AGC), the HK-ARRAYMIC-V3.2 guarantees uncompromised audio quality in acoustically challenging environments.
Key Features
360°Omnidirectional Far-Field Pickup
Captures clear speech from all directions across an expansive 10-meter (33 ft) radius, ensuring every speaker in the room is heard.
Smart Adaptive Gain Control (AGC)
Automatically adjusts microphone volume in real time based on the speaker’s distance and speaking level within the 10-meter range—delivering consistently balanced and comfortable audio levels.
Automatic Echo Cancellation (AEC)
On the premise of ensuring smooth and comfortable communication.eliminate the sound played by the speaker to make the call smooth and comfortable
Enhanced Voice Clarity (Noise Reduction)
Intelligent voice enhancement technology suppresses ambient background noise while boosting speech clarity for crisp, intelligible dialogue.
Typical Applications
Video Conferencing Systems
Large Interactive Displays & Digital Whiteboards
Android Smart Terminals & Kiosks
Voice-Controlled Commercial & Industrial Devices
Technical Specifications
| Microphone type | Linear equidistant array microphone |
| Number of digital wheat | 8 array microphone |
| The farthest pick-up distance | 6-10m |
| Audio capture rate | 16KHz/48KHz @16bit |
| Sensitivity | -30dBFS |
| SNR | 64 dBA |
| AOP | 120 dB SPL |
| Directivity | 180 deqrees forward and backward |
| Supporting Function | Echo Cancellation (A EC) The sound of man is enhanced Beam-forming Noise Suppression Automatic Gain Control （TBD dB） |
| Hardware Features | Echo Cancellation (A EC) The sound of man is enhanced Beam-forming Noise Suppression Automatic Gain Control （TBD dB） |
| Algorithm features | Noise suppression (NS) Automatic Gain Control （AGC） Automatic Echo Cancellation (AEC) Beamforming（BF) |
| Connect interface | 1*USB-5pin-1.25mm (GH) |
| USB power supply voltage | 5V±5% |
| Power consumption | Regular work :1W5V, 160mA (Max) |
| MiC main board size | （L）100mmx（W）20mmx（H）5.8mm |
| MIC size | （L）115mmx（W）6mmx（H）4.6mm |
